Leadshine AC Servo EL7 series is widely used for sizing, drilling and other process in wooden sizing machine with high-quality, high cost-effective feature.
1．Equipment Introduction

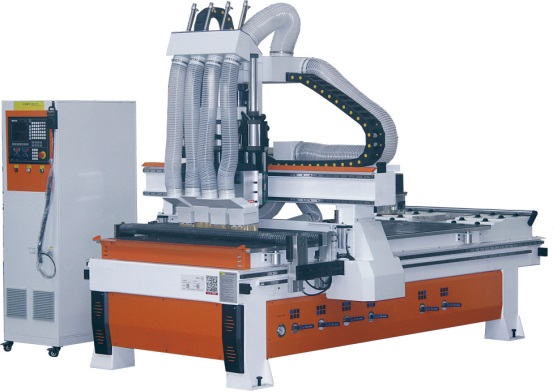

CNC wooden sizing machine is widely used for wooden processing in furniture market , it will be more effective if the machine is integrated with automatic typesetting technology , automatic cutting, special-shaped cutting, vertical drilling technology etc , Leadshine AC servo solution is widely used in CNC wooden sizing machine to make the processing more efficient, more flexible .
2. Leadshine Solution

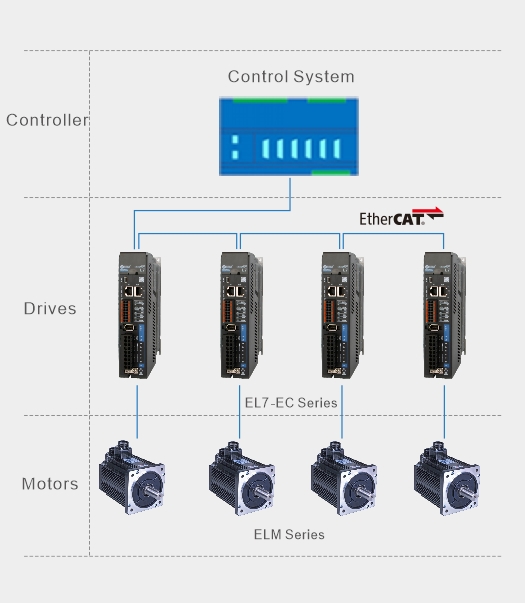

2.1 System Configuration
2.2 Product configuration
High-accuracy solution : AC Servo with EtherCAT communication
| Product | Model | Types of CNC wooden sizing machine | |||
| Multiple operation | Multiple operation with
rows of drills |
Single operation with disk tool storage | Single operation with disk tool storage with rows of drills | ||
| Servo drive and motors 1.5kw
( EtherCAT) |
EL7-EC1500Z | √ | √ | √ | √ |
| ELM1500LH130F-H | |||||
| ELM1500LH130E-H (brake) | |||||
| Servo drive and motors 0.75kw
( EtherCAT) |
EL7-EC750S | √ | √ | ||
| ELM0750LH80F-SS | |||||
| ELM0750LH80E-SS (brake) | |||||
Cost-effective solution : AC Servo with Pul+Dir
| Product | Model | Types of CNC wooden sizing machine | |||
| Multiple operation | Multiple operation with
rows of drills |
Single operation with disk tool storage | Single operation with disk tool storage with rows of drills | ||
| Servo drive and motors 1.5kw
( EtherCAT) |
EL7-D1500Z | √ | √ | √ | √ |
| ELM1500DH130F-H | |||||
| ELM1500DH130E-H (brake) | |||||
| Servo drive and motors 0.75kw
( EtherCAT) |
EL7-D750Z | √ | √ | ||
| ELM0750DH80F-SS | |||||
| ELM0750DH80E-SS (brake) | |||||
2.3 Solution Advantage:
Warning of Gantry control: warning of position deviation for dual Y axes with real-time communication
High performance: up to 2.5KHz for velocity-bandwidth , vibration suppression
Network communication: Servo drives with EtherCAT communication
2.4 Added value for machine maker :
Easy to tune : setting file of servo drive can be duplicated easily
Easy for Sizing/drilling : high-response servo make the circle movement faster and easier
Highly reliable : no disturbance with EtherCAT communication , make position more accurate

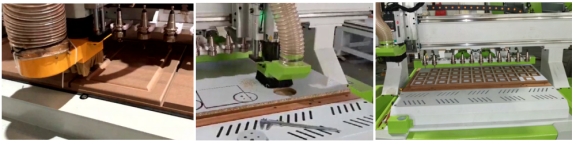

3. Application Scenario
